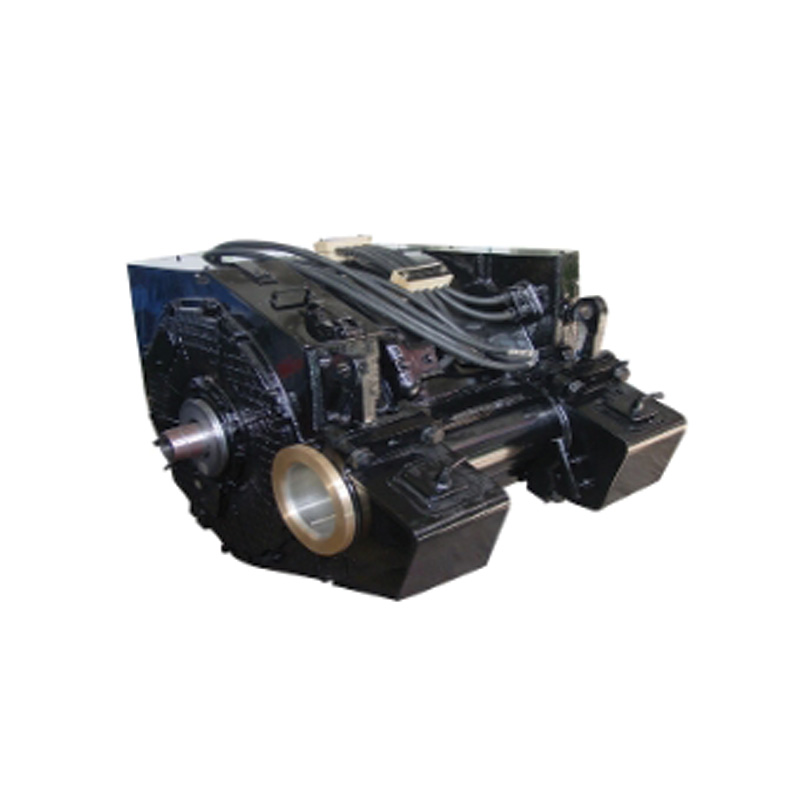

YZ95A pulse flow traction motor

This motor is used in the CIS market for traction motors for mining electric locomotives. The motor has six poles, double-sided drive, multiple armature slots (123 slots), compensating windings, cast steel chassis, sliding hug bearings, rotatable gear brush holder rings, and is particularly suited for operating conditions with high working voltages and harsh environments.

Model:
YZ95A
Brand:
YONGE

Availability:

Quantity:



Inquire Add to Basket

Advanced Motor Yz95A Traction Motor Enhanced Performance Motor High-Performance Electric Motor Yz95A Electric Motor Advanced Electric Traction Motor Enhanced Electric Motor Efficient Pulse Flow Motor Durable Electric Motor Precision Electric Motor

Product Description

YZ95A

Product name	Product technical standards and values	Product Details
Pulse-flow traction motors	Rated power: 520kW Rated voltage: 1475V Rated current 380A Rated speed: 680r/min Rated torque: 7303N-m Insulation class: H Weight 4598kg	This motor is used in the CIS market for traction motors for mining electric locomotives. The motor has six poles, double-sided drive, multiple armature slots (123 slots), compensating windings, cast steel chassis, sliding hug bearings, rotatable gear brush holder rings, and is particularly suited for operating conditions with high working voltages and harsh environments.

微信图片_20250313114504

微信图片_20250313114502

电机工序图片

拼图1 拼图3 拼图2

FAQs

Q What is your warranty?

A Our walranty is 12 months after received the centrifugal fans. During the warranty period,replace the damaged parts for free of charge. 0ut warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q What's your MQQ?

A The MQQ is 1set,but larger quantity, lower price.
Q Do you offer quality control and testing?

A Yes.we have strict quality control measures in place and offer testing services, including non-destructive testing, to ensure the quality of our products.
Q When can l get the quotation?

A We usually quote within 24 hours after we get your inquiry,lf you are urgent to get the price, please send the message on trade management or call us directly.
Q What's the information should l provide when inquiry?

A A: Flow rate&Air Volume
B: Pressure
C: Purpose
D:Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
