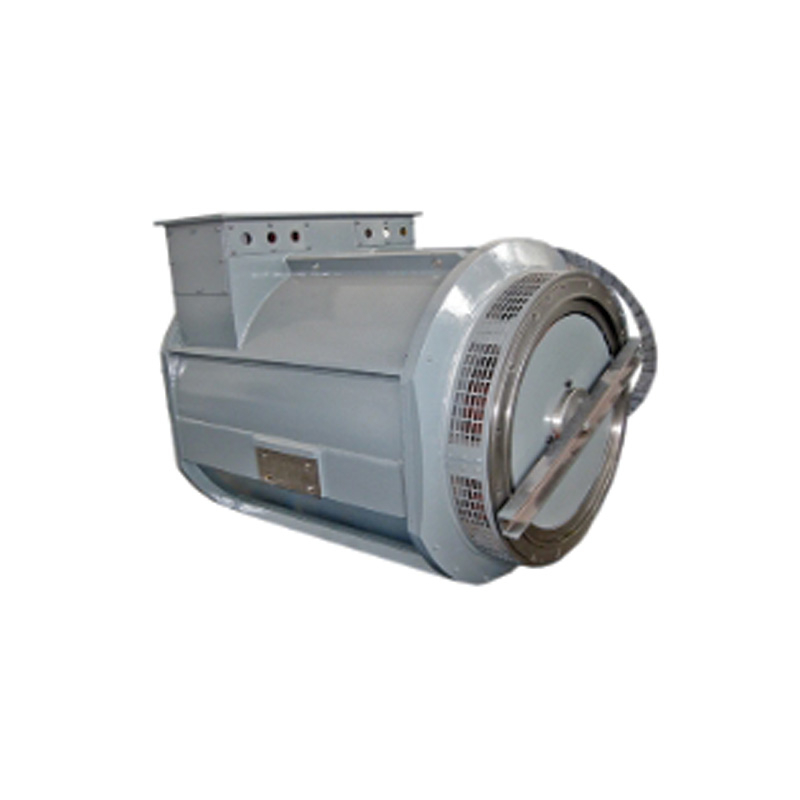

YJ177A brushless synchronous generator for 240 tonnes mining dump truck AC electric drive system supporting. The motor is a main auxiliary synchronous generator. The main and auxiliary generator adopts common core design, and the main and auxiliary windings are two sets of independent windings in the same slot. The main winding adopts double star shift 30 degree electric angle connection, the output of main winding is rectified and inverted to supply power for the AC drive system; the output of auxiliary winding is rectified and inverted to supply power for the main fan and the fan of the braking unit.
Rated power: main 1646KW auxiliary 171KW Rated voltage: main 1500V auxiliary 500V Rated current: main 333.5×2A auxiliary 207A Rated speed: 1800r/min Rated frequency: 120Hz Rated efficiency: 95% Power factor: 0.95 Insulation class: H Weight : 3550Kg
YJ177A brushless synchronous generator for 240 tonnes mining dump truck AC electric drive system supporting. The motor is a main auxiliary synchronous generator. The main and auxiliary generator adopts common core design, and the main and auxiliary windings are two sets of independent windings in the same slot. The main winding adopts double star shift 30 degree electric angle connection, the output of main winding is rectified and inverted to supply power for the AC drive system; the output of auxiliary winding is rectified and inverted to supply power for the main fan and the fan of the braking unit.
