Industrial Heavy Duty Railcar with Advanced Load Capacity Features
Share to:

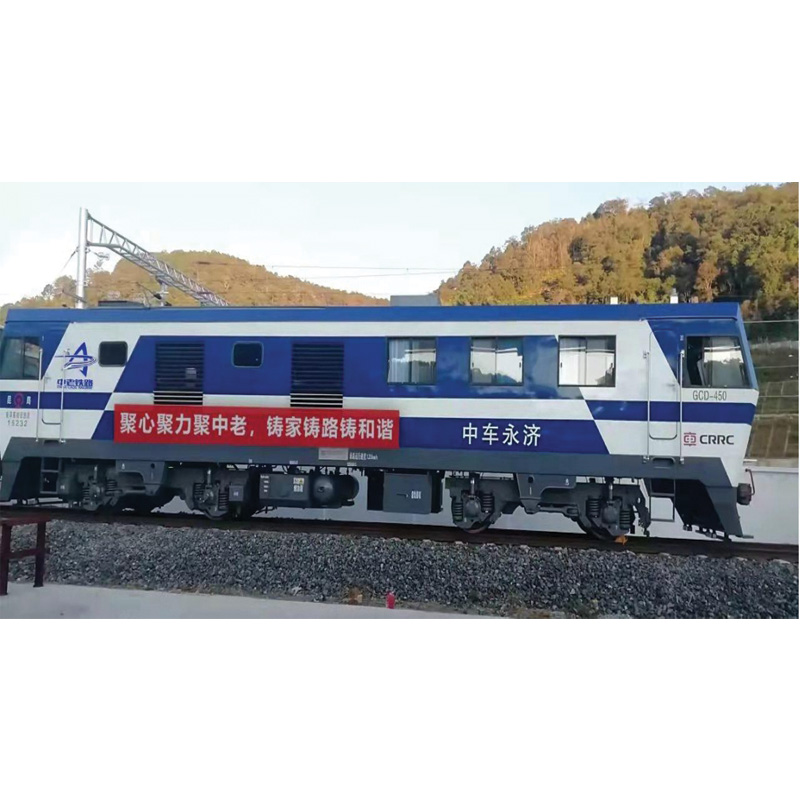

GCD-450 heavy railcar is suitable for the transportation of construction materials and personnel during railroad construction and line maintenance, and can also be used for shunting operation and small operation of industrial and mining enterprises, and can also provide AC400V, 50Hz, 160kVA three-phase AC power supply for railroad construction, rescue and relief, and engineering machinery.
GCD-450 heavy railcar is suitable for the transportation of construction materials and personnel during railroad construction and line maintenance, and can also be used for shunting operation and small operation of industrial and mining enterprises, and can also provide AC400V, 50Hz, 160kVA three-phase AC power supply for railroad construction, rescue and relief, and engineering machinery.
Product Model
GCD450
Product Name
Heavy Duty Railcar
Diesel Engine Power(kW)
470
Transmission mode
AC-DC electric drive
Shaft type
B0-2
Wheel diameter(mm)
915
Gauge(mm)
1435
Wheelbase(mm)
2800
Weight(t)
60
Minimum curve radius(m)
125
Brake Type
Air brake + parking brake
Overall Dimension(mm)
16500×3105×4150
Maximum speed(km/h)
120
Continuous speed(km/h)
22
Starting traction(kN)
102
Continuous traction (kN)
56
