Heavy Duty Railcar with Advanced Traction Technology for Smooth Transport
Share to:

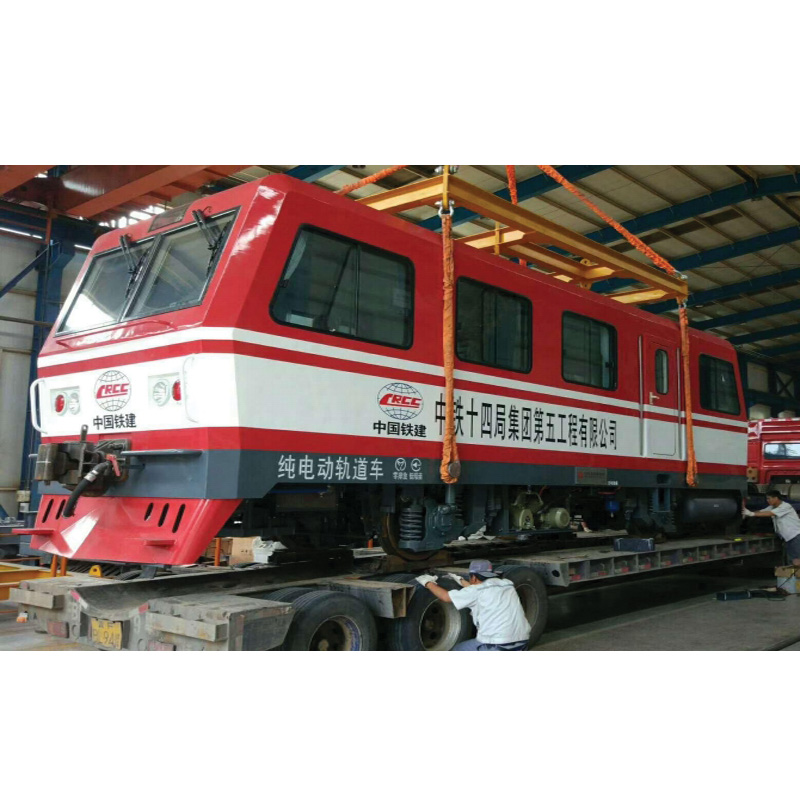

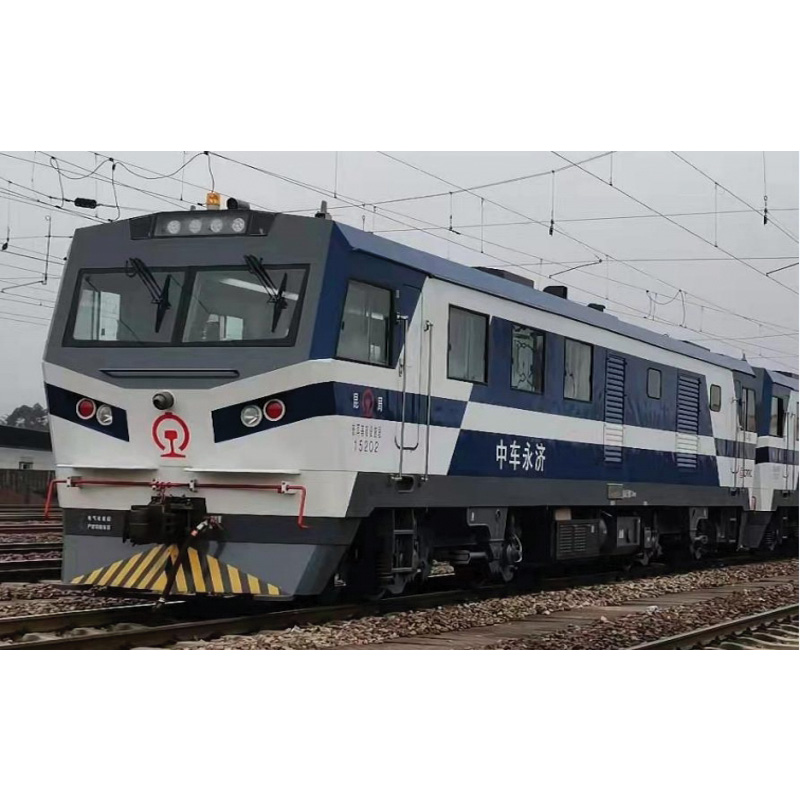

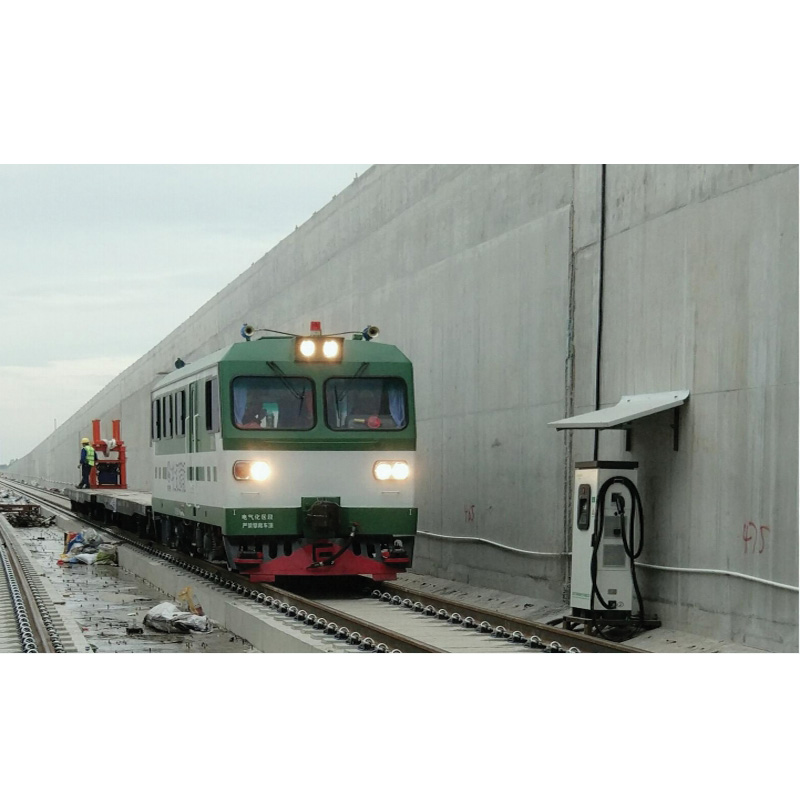

GCD-1000 heavy railcar is the most powerful electric drive railcar in China developed to meet the needs of railway construction and hauling large-scale road-supporting machinery grouping, which is suitable for belonging to the section of public works machinery. It is mainly used for the transport of materials and personnel for railway construction and line overhaul, and the hauling of large-scale road maintenance machinery formation from the site to the construction site and back, as well as the hauling of construction site transfer. It can also provide AC400V, 50Hz, 200kVA three-phase AC power supply for railway construction.
GCD-1000 heavy railcar is the most powerful electric drive railcar in China developed to meet the needs of railway construction and hauling large-scale road-supporting machinery grouping, which is suitable for belonging to the section of public works machinery. It is mainly used for the transport of materials and personnel for railway construction and line overhaul, and the hauling of large-scale road maintenance machinery formation from the site to the construction site and back, as well as the hauling of construction site transfer. It can also provide AC400V, 50Hz, 200kVA three-phase AC power supply for railway construction.
Product Model
GCD1000
Product Name
Heavy Duty Railcar
Diesel engine power(kW)
1000
Transmission mode
AC-DC electric drive
Shaft type
B0-B0
Wheel diameter(mm)
1050
Gauge(mm)
1435
Wheelbase(mm)
2800
Weight(t)
92
Minimum curve radius(m)
125
Brake Type
Air brake + parking brake
Overall Dimension(mm)
16500×3106×4150
Maximum speed(km/h)
100
Continuous speed(km/h)
12
Starting traction force(kN)
334
Continuous traction (kN)
210
