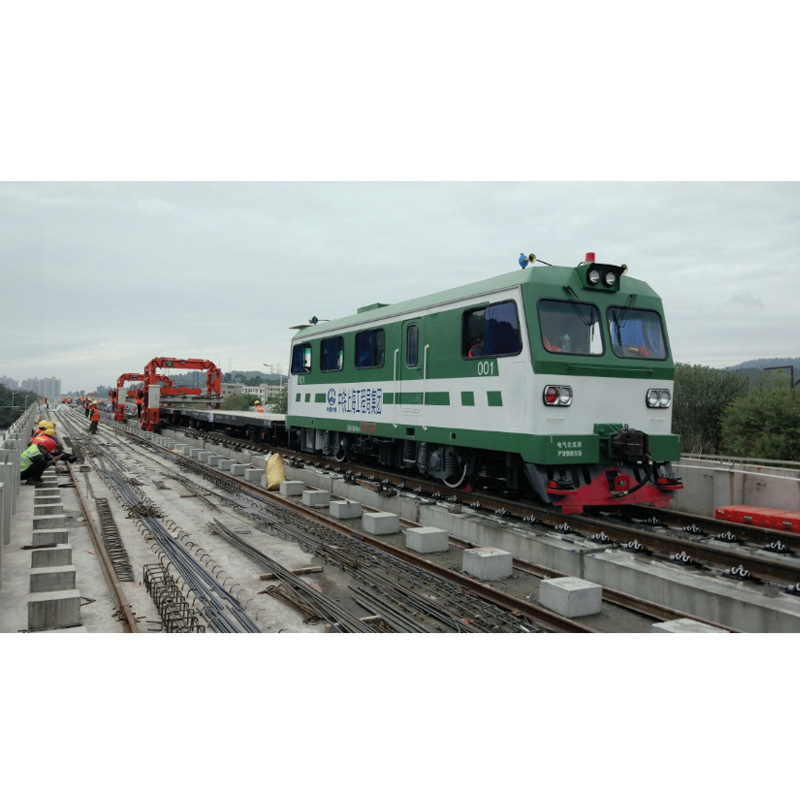

1. Low noise, zero emission. Pure electric railcar is powered by on-board power supply and adopts electric motor instead of engine, which is ultra-quiet and pollution-free, fundamentally solving the air pollution caused by diesel exhaust and greatly improving the tunnel construction environment. 2. Simple structure, easy operation. Pure electric railcar than mechanical transmission railcar, transmission running parts less, easy maintenance, and stepless speed regulation, driving operation is more simple, reduce the labor intensity of the driver and crew. 3. Fuel-saving and environmental protection, low utilization cost. The vehicle can travel about 200km on a single charge, and under the same power, it saves about 49% of the cost compared with the traditional power of diesel engine, and the comprehensive utilization cost is low. 4. Regenerative braking and energy return function. It can save energy and improve driving range, which has significant economic value and social benefits, and also can reduce brake tile wear and reduce the vehicle failure rate and cost of use. 5. Intelligent and informationized. Adopting battery management system and intelligent instrument, it can display real-time driving status data of the whole vehicle, with remote monitoring and fault self-diagnosis function, which improves the intelligence and informationization level of the railcar.
1. Low noise, zero emission. Pure electric railcar is powered by on-board power supply and adopts electric motor instead of engine, which is ultra-quiet and pollution-free, fundamentally solving the air pollution caused by diesel exhaust and greatly improving the tunnel construction environment. 2. Simple structure, easy operation. Pure electric railcar than mechanical transmission railcar, transmission running parts less, easy maintenance, and stepless speed regulation, driving operation is more simple, reduce the labor intensity of the driver and crew. 3. Fuel-saving and environmental protection, low utilization cost. The vehicle can travel about 200km on a single charge, and under the same power, it saves about 49% of the cost compared with the traditional power of diesel engine, and the comprehensive utilization cost is low. 4. Regenerative braking and energy return function. It can save energy and improve driving range, which has significant economic value and social benefits, and also can reduce brake tile wear and reduce the vehicle failure rate and cost of use. 5. Intelligent and informationized. Adopting battery management system and intelligent instrument, it can display real-time driving status data of the whole vehicle, with remote monitoring and fault self-diagnosis function, which improves the intelligence and informationization level of the railcar.
Gauge
1435mm
Battery power
173kWh
Wheelbase
4500mm
Traction motor power
150kW×2
Wheel diameter
840mm
Starting traction force
63.4kN
Axle column type
B
Maximum running speed
60km/h
Weight
20t
Minimum curve radius
100m
transmission method
direct-alternating electric drive
Hook centerline height from rail surface
880±10mm
braking method
Air brake, electric brake Parking hand brake
Overall dimensions (L×W×H)
10540mm×2590mm×3420mm
