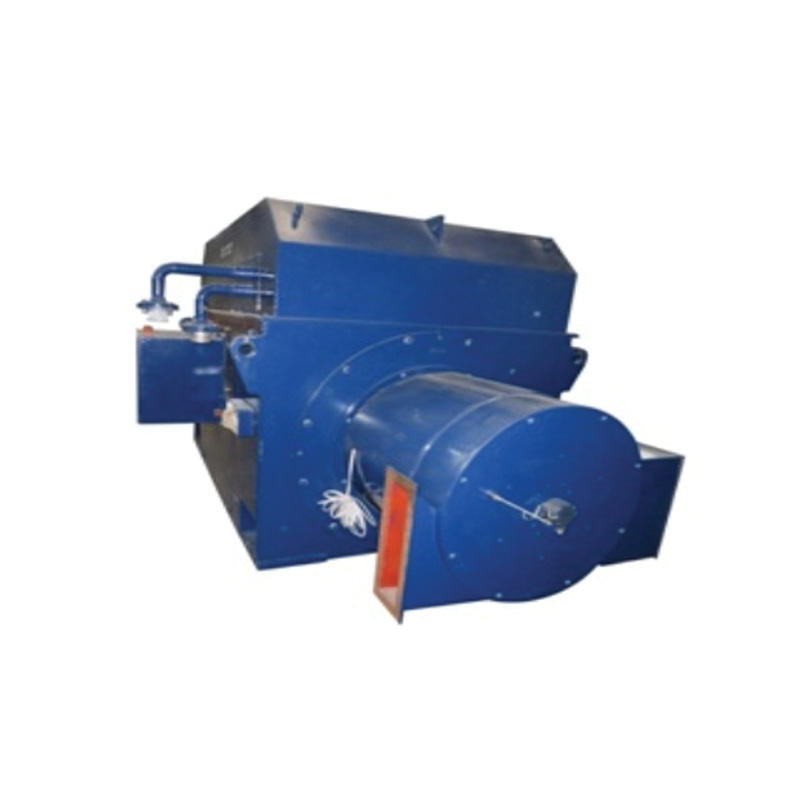

5MW Air-Cooled Doubly-Fed Wind Turbine

The 5MW air-cooled doubly-fed wind turbine is the largest doubly-fed wind turbine in China. It adopts radial ventilated air-water cooling structure, box-type seat, three-bearing support, and IP54 protection level of the body; it adopts H-class insulation structure, stator and rotor winding vacuum pressure dipping paint and rotating baking treatment, which makes the generator overall insulation performance excellent and reliable, with high mechanical and electrical strength; the rotor adopts special corona-resistant insulating structure, which has a strong ability of resisting harmonic impacts of frequency converter.

Model:
5MW Air-Cooled Doubly-Fed Wind Turbine
Brand:
YONGE

Availability:

Quantity:



Inquire Add to Basket

2MW Wind Turbine Plateau Wind Turbine Air-to-Air Cooled Turbine Doubly-Fed Wind Turbine 2MW Wind Power Generator Plateau Wind Energy System Air-Cooled Wind Turbine Renewable Energy Solution Sustainable Wind Power High Efficiency Turbine

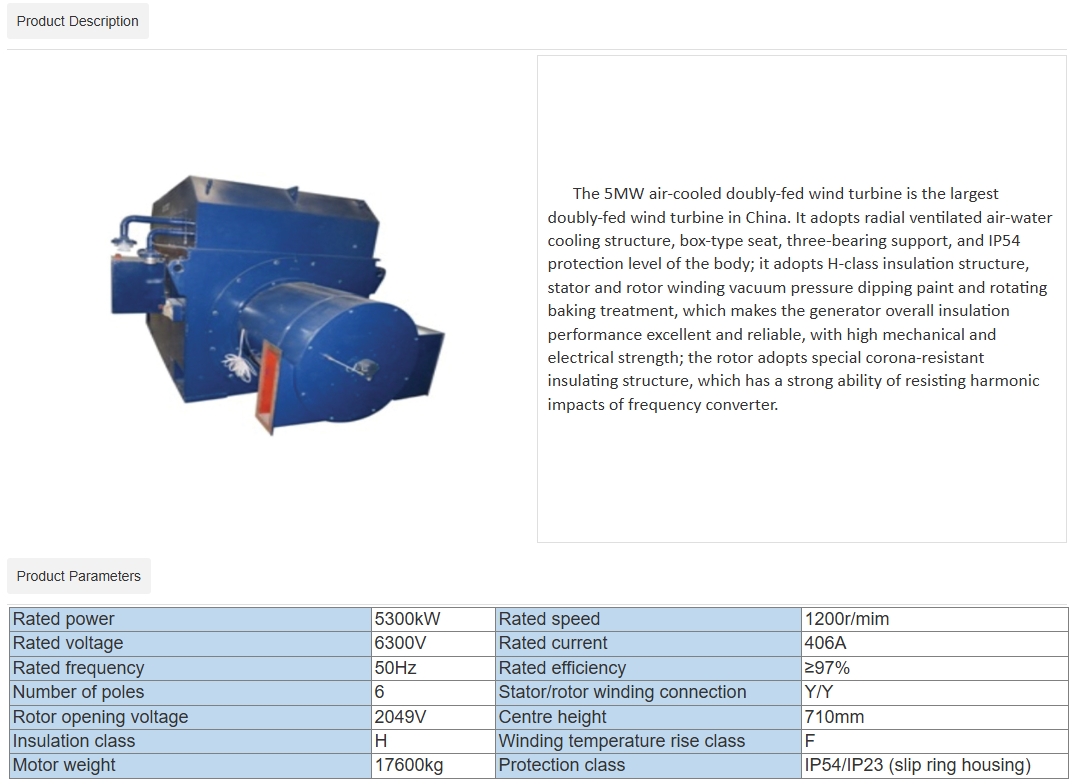

Product Description

微信截图_20250123164241

微信图片_20250313114504

微信图片_20250313114502

电机工序图片

拼图1 拼图3 拼图2

FAQs

Q What is your warranty?

A Our walranty is 12 months after received the centrifugal fans. During the warranty period,replace the damaged parts for free of charge. 0ut warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q What's your MQQ?

A The MQQ is 1set,but larger quantity, lower price.
Q Do you offer quality control and testing?

A Yes.we have strict quality control measures in place and offer testing services, including non-destructive testing, to ensure the quality of our products.
Q When can l get the quotation?

A We usually quote within 24 hours after we get your inquiry,lf you are urgent to get the price, please send the message on trade management or call us directly.
Q What's the information should l provide when inquiry?

A A: Flow rate&Air Volume
B: Pressure
C: Purpose
D:Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
