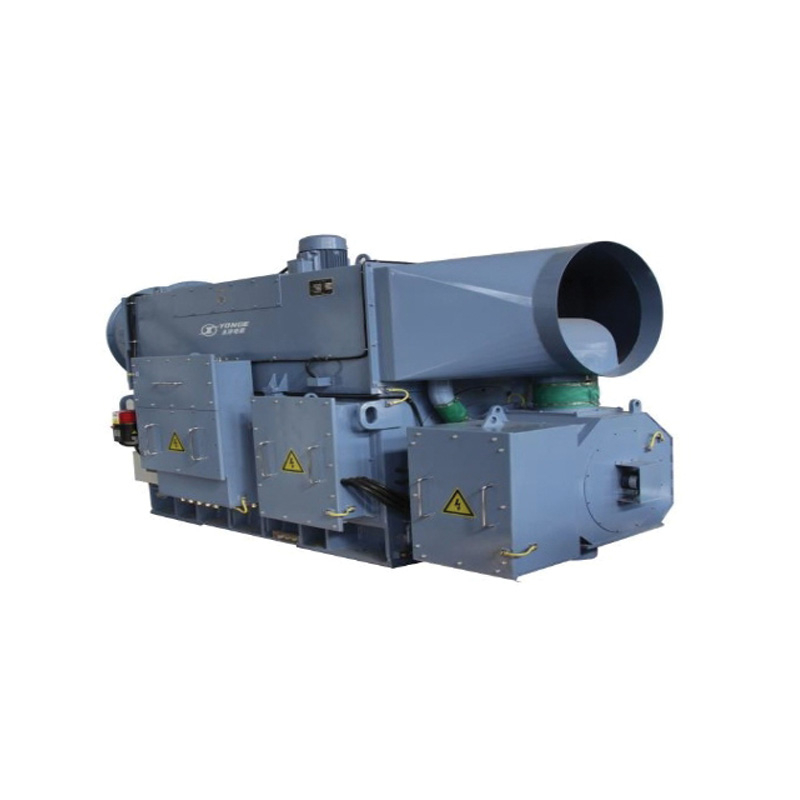

2MW Plateau Air-to-Air Cooled Doubly-Fed Wind Turbine

The motor is a 2MW plateau air-to-air cooled doubly-fed wind turbine, supporting 2MW variable-speed doubly-fed wind turbine, suitable for wind farms in the region of 2000m to 3000m above sea level. The motor is installed in the nacelle, the rotor shaft at the drive end is linked to the gearbox through a coupling to receive mechanical power, the stator is connected to the grid, and the rotor is connected to the grid through a four-quadrant converter. It can operate within a speed range of +/-38% of the synchronous speed to achieve the conversion of mechanical energy into electrical energy.
As a key component of wind turbine, it mainly includes air-to-air cooler, welded chassis, core winding assembly, insulated end cover, three-phase wire-wound rotor, slip ring brush holder assembly and slip ring chamber, stator and rotor junction box, sensor and auxiliary junction box device, encoder and so on.

Model:
2MW Plateau Air-to-Air Cooled Doubly-Fed Wind Turbine
Brand:
YONGE

Availability:

Quantity:



Inquire Add to Basket

2MW Wind Turbine Plateau Wind Turbine Air-to-Air Cooled Turbine Doubly-Fed Wind Turbine 2MW Wind Power Generator Plateau Wind Energy System Air-Cooled Wind Turbine Renewable Energy Solution Sustainable Wind Power High Efficiency Turbine

Product Description

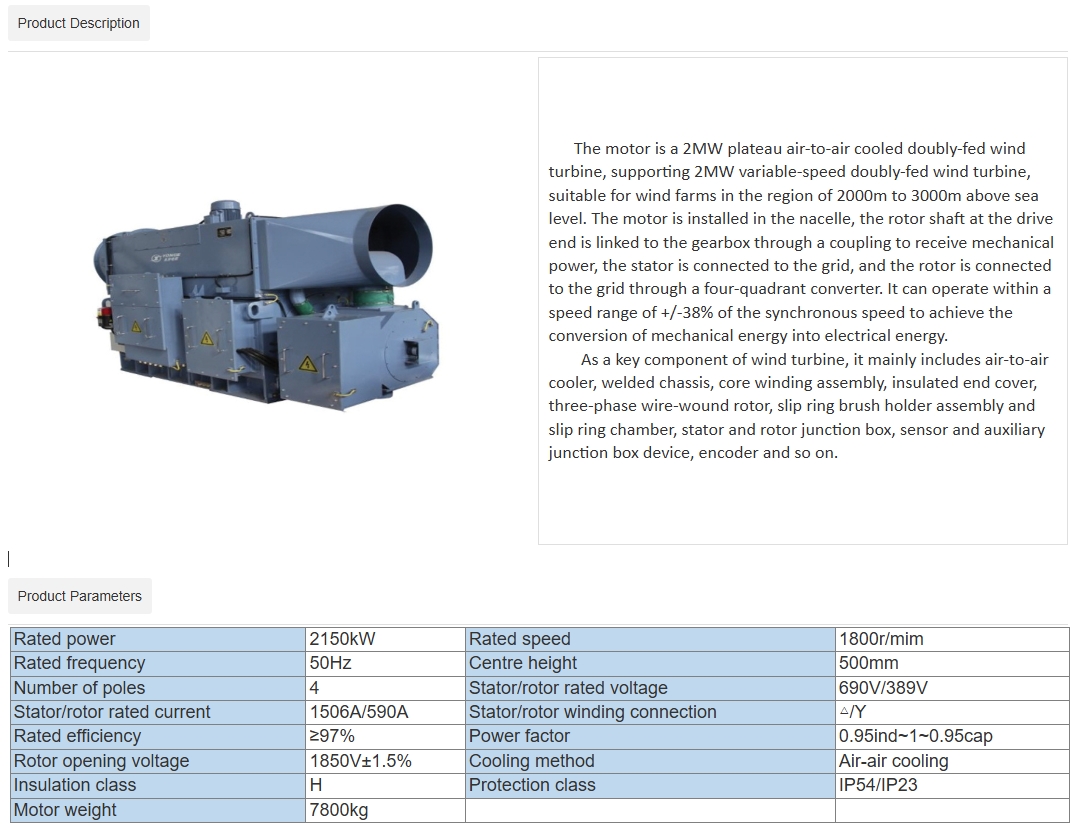

微信截图_20250123164035

微信图片_20250313114504

微信图片_20250313114502

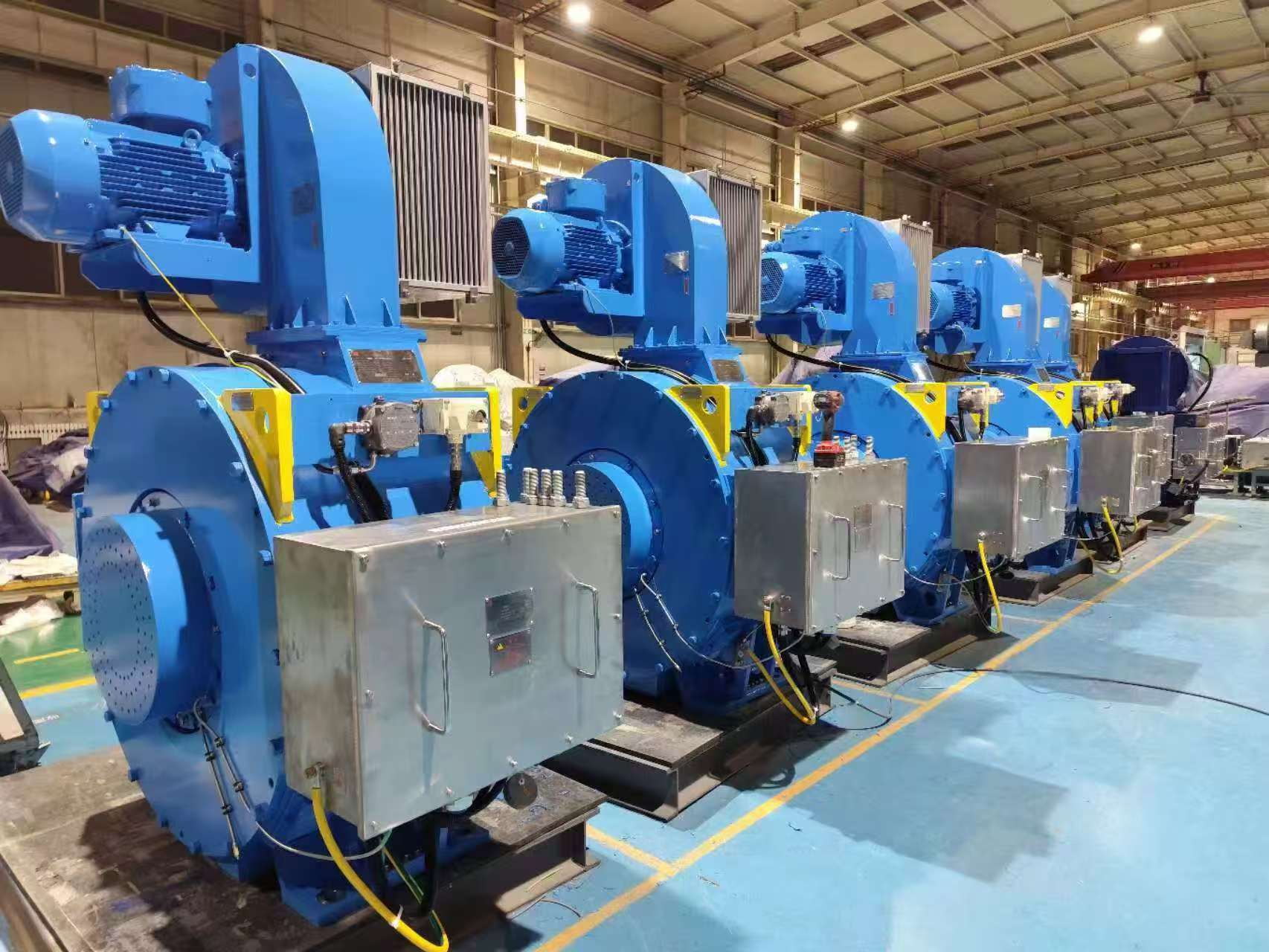

电机工序图片

拼图1 拼图3 拼图2

FAQs

Q What is your warranty?

A Our walranty is 12 months after received the centrifugal fans. During the warranty period,replace the damaged parts for free of charge. 0ut warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q What's your MQQ?

A The MQQ is 1set,but larger quantity, lower price.
Q Do you offer quality control and testing?

A Yes.we have strict quality control measures in place and offer testing services, including non-destructive testing, to ensure the quality of our products.
Q When can l get the quotation?

A We usually quote within 24 hours after we get your inquiry,lf you are urgent to get the price, please send the message on trade management or call us directly.
Q What's the information should l provide when inquiry?

A A: Flow rate&Air Volume
B: Pressure
C: Purpose
D:Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
