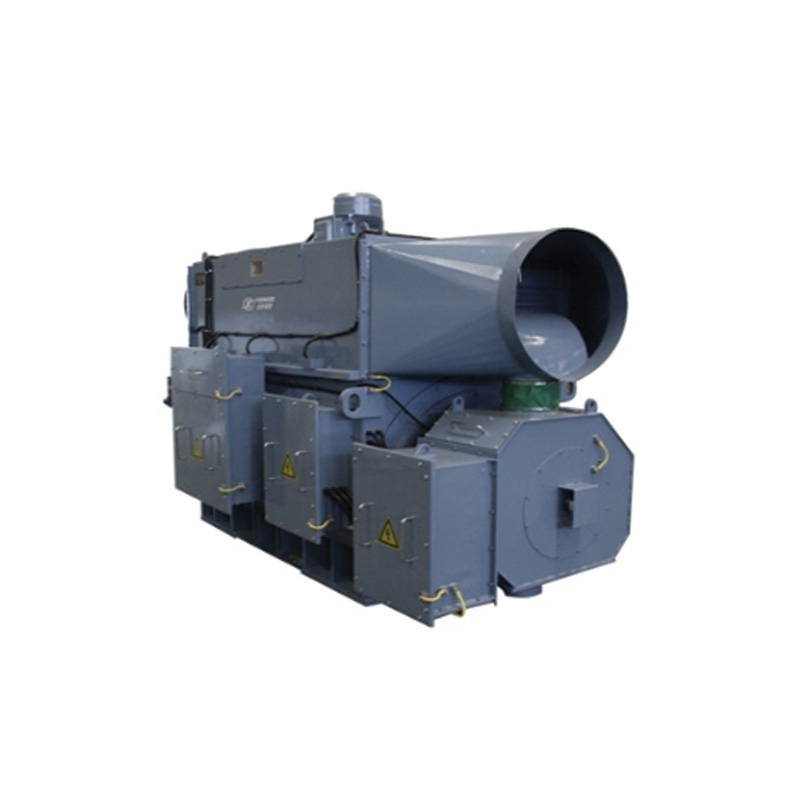

2.5MW Plateau Air-to-Air Cooled Doubly-Fed Wind Turbine

The motor is a 2.5MW plateau air-air-cooled doubly-fed wind turbine, supporting the 2.5MW variable-speed doubly-fed wind turbine, used in wind farms in the plateau area at an altitude of 3,000m and below.
The motor is installed in the nacelle and is suitable for variable-speed and constant-frequency wind turbines. The wind turbine drives the rotor of the generator through the main shaft and the gearbox after speed change, and the stator of the generator sends out 690V, 50Hz three-phase alternating current through the transformer, which is directly connected to the power grid and generates electricity on the grid; in the range of +/-38% of synchronous rotational speed, the rotor is connected to the power grid through the frequency inverter to carry out the bidirectional flow of energy and realise the variable-speed and constant-frequency power generation. Constant frequency power generation.
As a key component of the wind turbine, it mainly includes, welded chassis, core winding assembly, insulated end cover, three-phase wire-wound rotor, slip ring brush holder assembly and slip ring chamber, stator and rotor junction box, sensor and auxiliary junction box device, lightning protection device, encoder and so on.

Model:
2.5MW Plateau Air-to-Air Cooled Doubly-Fed Wind Turbine
Brand:
YONGE

Availability:

Quantity:



Inquire Add to Basket

2.5MW Wind Turbine Plateau Air-to-Air Cooled Doubly-Fed Generator Renewable Energy Solution High Power Output Advanced Cooling System Efficient Wind Energy Sustainable Power Generation Reliable Wind Turbine Low Maintenance Design

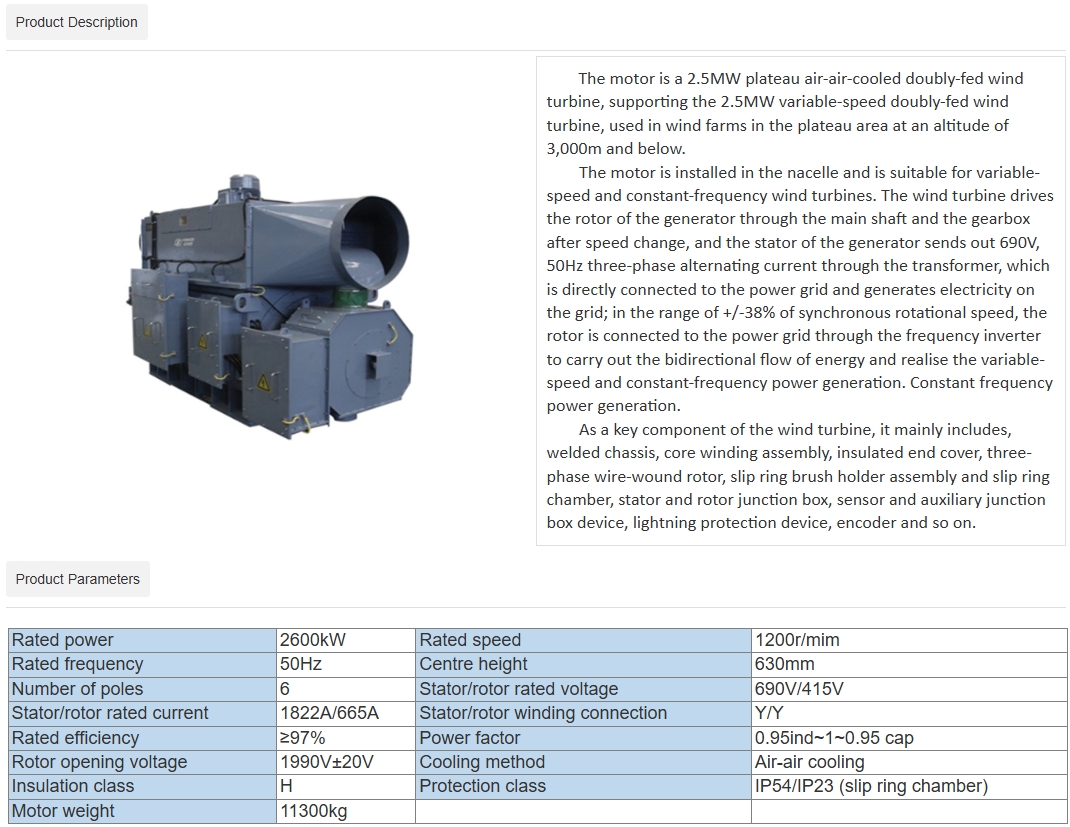

Product Description

微信截图_20250124081127

微信图片_20250313114504

微信图片_20250313114502

电机工序图片

拼图1 拼图3 拼图2

FAQs

Q What is your warranty?

A Our walranty is 12 months after received the centrifugal fans. During the warranty period,replace the damaged parts for free of charge. 0ut warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q What's your MQQ?

A The MQQ is 1set,but larger quantity, lower price.
Q Do you offer quality control and testing?

A Yes.we have strict quality control measures in place and offer testing services, including non-destructive testing, to ensure the quality of our products.
Q When can l get the quotation?

A We usually quote within 24 hours after we get your inquiry,lf you are urgent to get the price, please send the message on trade management or call us directly.
Q What's the information should l provide when inquiry?

A A: Flow rate&Air Volume
B: Pressure
C: Purpose
D:Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
