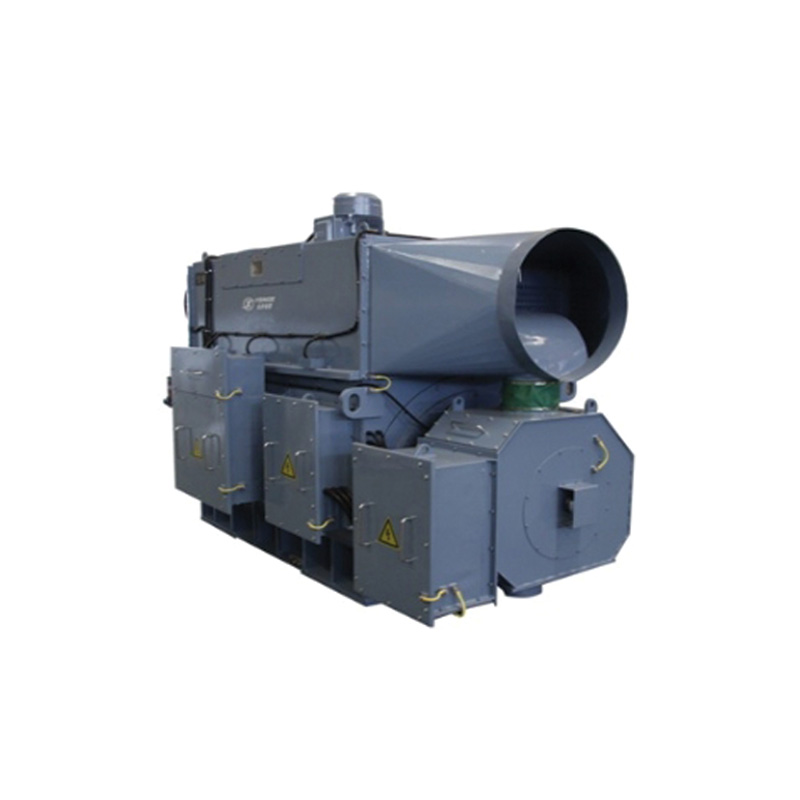

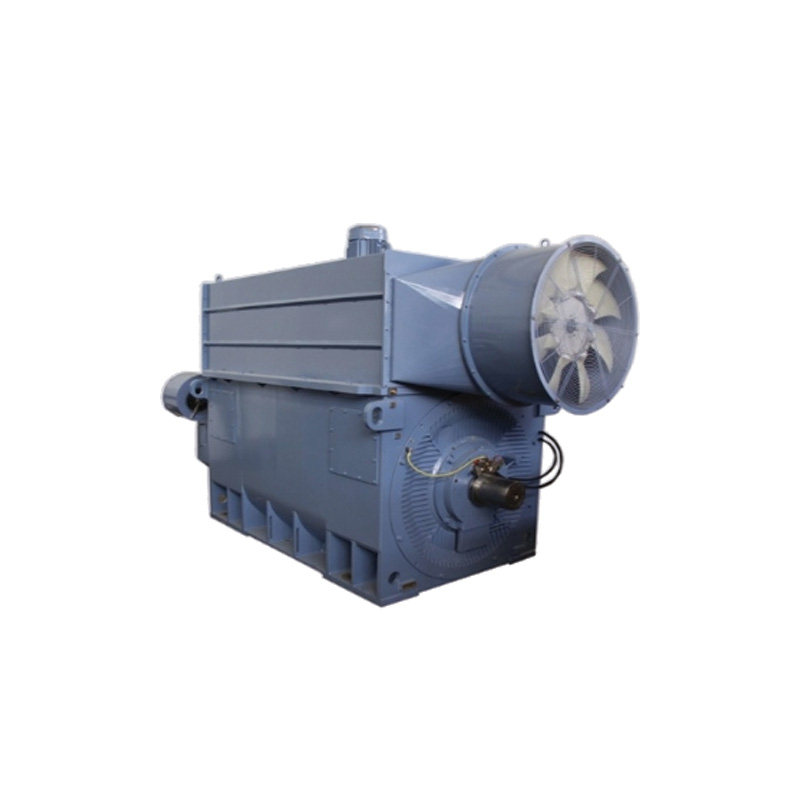

2.5MW Air-to-Air Cooled Double-Fed Wind Turbine (alpine Type)

The motor can be used in 2.5MW~3.2MW variable-speed doubly-fed wind turbine, suitable for operation in wind farms under -46ºC~50ºC alpine environment; it is suitable for the electrical environment with a wide range of voltage fluctuation of the grid (690V±15%) and wide range of power factor (capacitance 0.894~1~inductance 0.838), and it can provide larger reactive power for the power grid. The motor is mounted in the nacelle, the drive end rotor shaft is connected to the gearbox through a coupling to convert mechanical power into electrical power, the stator is connected to the grid and feeds electrical power back to the grid, and the rotor is connected to the grid through a four-quadrant converter. The rotor is connected to the grid via a four-quadrant converter. The rotor can be operated at up to '-38%' of the synchronous speed, converting mechanical energy into electrical energy.
As a key component of the wind turbine, it mainly includes welded chassis, stator core winding assembly, three-phase wire-wound rotor, insulated end caps, air-to-air cooler, connecting plate assembly, slip-ring chamber and slip-ring brush holder assembly, slip-ring chamber cooling fan, automatic oil filler, stator/rotor junction box, auxiliary junction box, and encoder.

Model:
2.5MW Air-to-Air Cooled Double-Fed Wind Turbine (alpine type)
Brand:
YONGE

Availability:

Quantity:



Inquire Add to Basket

2.5MW Wind Turbine Double-Fed Wind Turbine Air-to-Air Cooled Turbine Alpine Wind Turbine Renewable Energy Solution High Power Wind Generator Energy-Efficient Turbine Wind Farm Equipment Green Energy Technology Sustainable Power Generation

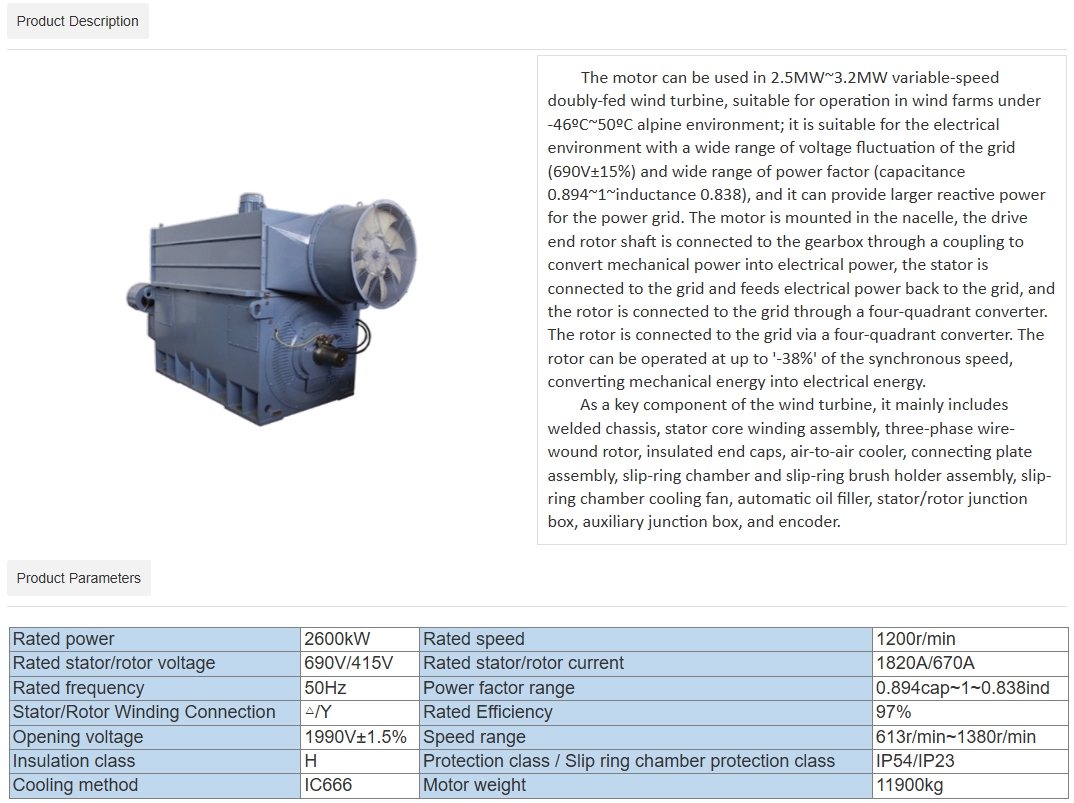

Product Description

微信截图_20250124081726

微信图片_20250313114504

微信图片_20250313114502

电机工序图片

拼图1 拼图3 拼图2

FAQs

Q What is your warranty?

A Our walranty is 12 months after received the centrifugal fans. During the warranty period,replace the damaged parts for free of charge. 0ut warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q What's your MQQ?

A The MQQ is 1set,but larger quantity, lower price.
Q Do you offer quality control and testing?

A Yes.we have strict quality control measures in place and offer testing services, including non-destructive testing, to ensure the quality of our products.
Q When can l get the quotation?

A We usually quote within 24 hours after we get your inquiry,lf you are urgent to get the price, please send the message on trade management or call us directly.
Q What's the information should l provide when inquiry?

A A: Flow rate&Air Volume
B: Pressure
C: Purpose
D:Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
