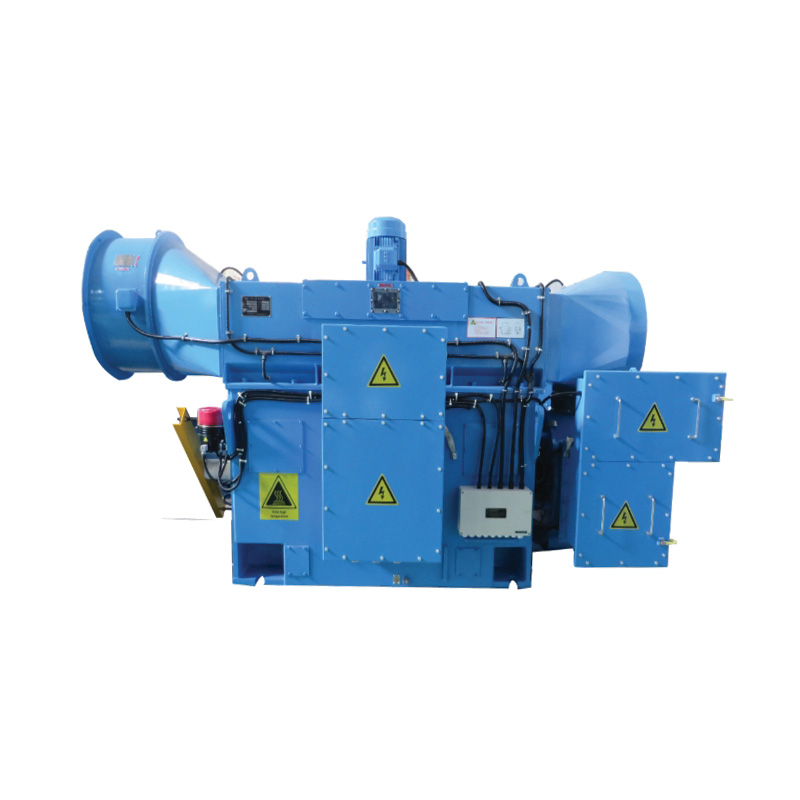

1.5MW Air-to-Air Cooled Double-Fed Wind Turbine

The motor is matched with 1.5MW variable speed doubly-fed wind turbine, adopting mature technology for more than ten years and verified by more than a thousand units operation, with the advantage of high reliability. The motor is installed in the nacelle, the rotor shaft at the drive end is linked to the gearbox through a coupling to receive mechanical power, the stator is connected to the grid, and the rotor is connected to the grid through a four-quadrant converter. It can be operated within a speed range of +/-36.5% of the synchronous speed to achieve the conversion of mechanical energy into electrical energy.

Model:
1.5MW Air-to-Air Cooled Double-Fed Wind Turbine
Brand:
YONGE

Availability:

Quantity:



Inquire Add to Basket

1.5MW Wind Turbine Double-Fed Wind Turbine Air-to-Air Cooled Turbine Renewable Energy Solution Wind Power Generation High Efficiency Turbine Green Energy Technology Sustainable Wind Turbine Low Maintenance Turbine Reliable Power Generation

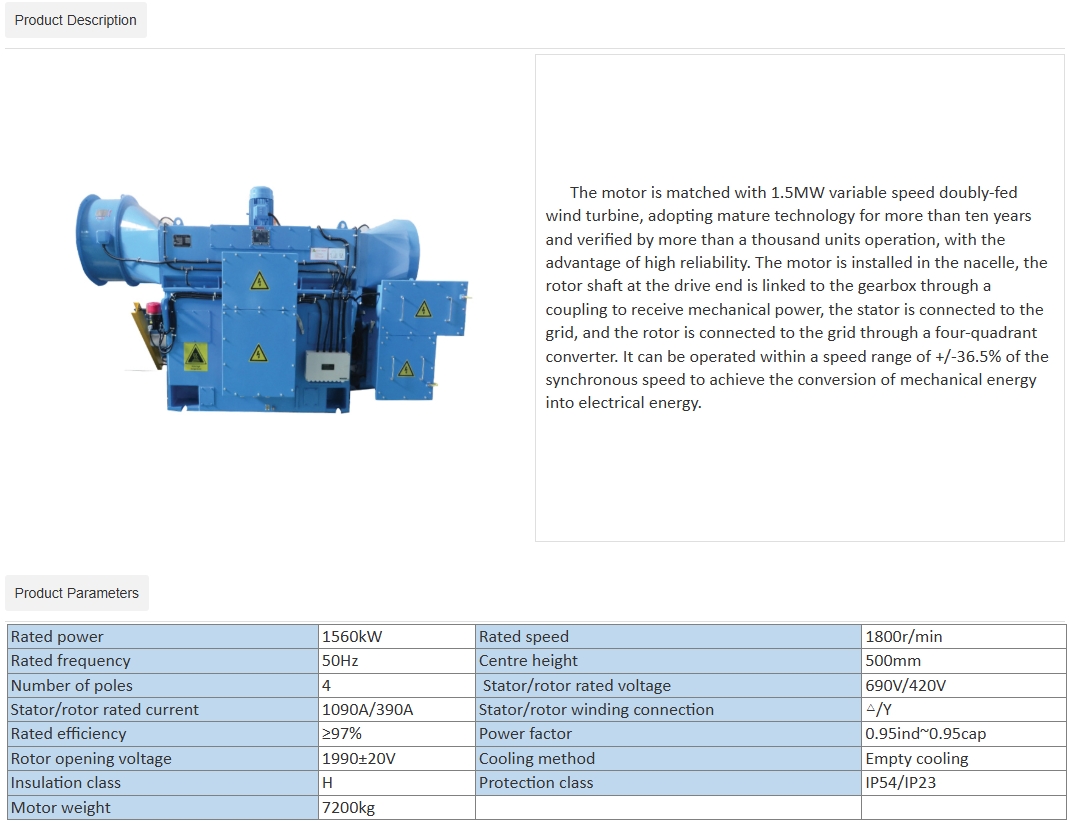

Product Description

微信截图_20250123144646

微信图片_20250313114504

微信图片_20250313114502

电机工序图片

拼图1 拼图3 拼图2

FAQs

Q What is your warranty?

A Our walranty is 12 months after received the centrifugal fans. During the warranty period,replace the damaged parts for free of charge. 0ut warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q What's your MQQ?

A The MQQ is 1set,but larger quantity, lower price.
Q Do you offer quality control and testing?

A Yes.we have strict quality control measures in place and offer testing services, including non-destructive testing, to ensure the quality of our products.
Q When can l get the quotation?

A We usually quote within 24 hours after we get your inquiry,lf you are urgent to get the price, please send the message on trade management or call us directly.
Q What's the information should l provide when inquiry?

A A: Flow rate&Air Volume
B: Pressure
C: Purpose
D:Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
